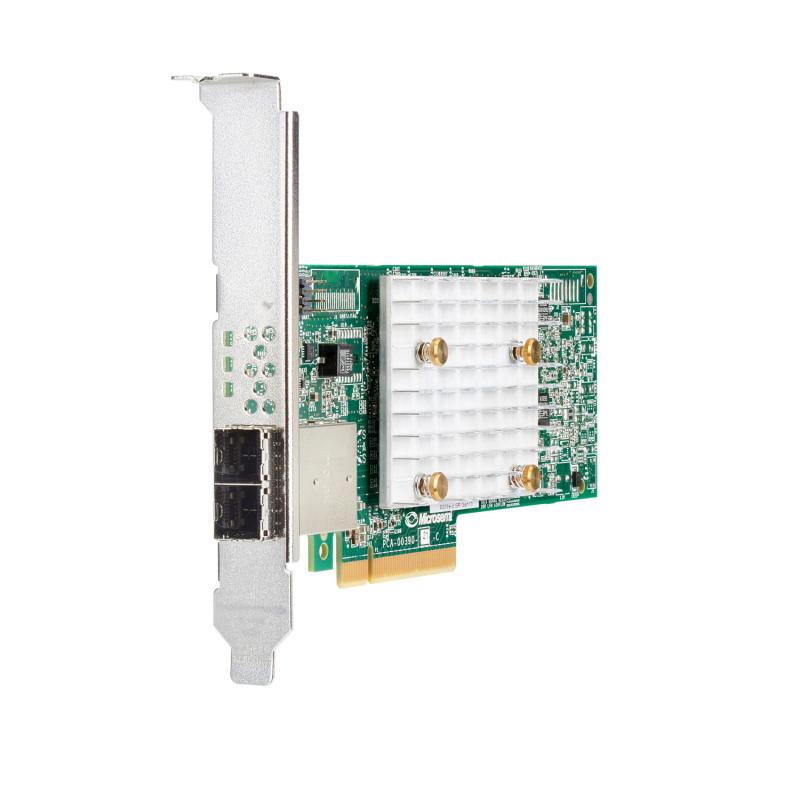

Name: HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller
SKU: 804398-B21
Availability: OutOfStock

HPE Smart Array E208e-p SR Gen10

Lifecycle

Obsolete Date 31-05-2029
End of support date 30-09-2028

Specifications

Warranty The warranty for this device is 3-years parts only.
Transfer rate 12Gb/s SAS per lane 6Gb/s SATA per lane PCI Express 3.0 x8 lane width
Form factor Standard PCIe plug-in controller
Cache No cache
Additional features HPE Smart Array SR Secure Encryption (optional license)
Servers supported HPE ProLiant DL360 Gen10 HPE ProLiant DL380 Gen10 HPE ProLiant DL560 Gen10 HPE ProLiant DL580 Gen10 HPE ProLiant ML110 Gen10 HPE ProLiant ML350 Gen10 HPE ProLiant XL170r Gen10 HPE ProLiant XL190r Gen10 HPE ProLiant XL230K Gen10
Supported disk enclosure HPE D3610 Disk Enclosure HPE D3710 Disk Enclosure HPE D6020 Disk Enclosure HPE MSA 1040 SAN Storage HPE MSA 1050 SAN Storage HPE MSA 2040 SAN Storage HPE MSA 2050 SAN Storage
RAID levels 0, 1, 5, 10
Ports External: 8 SAS lanes across 2 x4 Mini-SAS HD ports

Quickspecs

Overview

Are you looking for a cost effective, enterprise-class controller to connect to externally attached drives? The HPE Smart Array E208e-p SR Gen10 Controller, supporting 12 Gb/s SAS and PCIe 3.0, provides a cost-effective storage solution with enterprise-class reliability supporting RAID 0, 1, 5, and 10 and software-defined storage (SDS). This controller has eight external SAS lanes, allowing connection to SAS or SATA drives in an external disk enclosure, supports Mixed Mode operations of RAID and HBA simultaneously, and offers encryption for data-at-rest on any drive. This controller occupies a PCIe expansion slot.

Features

Cost-Effective SAS Storage Connectivity

The HPE Smart Array E208e-p SR Gen10 Controller is a cost effective enterprise-class controller that provides the basic building blocks for simple RAID storage solutions while delivering 12 Gb/s SAS connectivity on HPE ProLiant Gen10 Servers when connected to 12 Gb/s external storage devices.

Offers a low-cost solution to enable software-defined storage.

Connects to external just a bunch of disks (JBODs) and advanced external storage arrays.

Quickly set up, configure, and manage drives attached to the controller with HPE Smart Storage Administrator (SSA), an intuitive interface used to create RAID volumes, manage advanced controller features, and deploy Smart Array solutions.

Rapidly configure simple RAID volumes on servers with the UEFI storage configuration tool, which also facilitates scripting support to configure an array via iLO through RESTful interface.

The HPE Smart Array E208e-p SR Gen10 Controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously and eliminates the expense of having to purchase another controller.

Improved Efficiency and Storage Management

Preserve data integrity with HPE SmartSSD Wear Gauge, which alerts you to potential drive issues before a drive fails.

Comply with regulations for sensitive data, such as HIPAA and Sarbanes-Oxley with HPE Smart Array SR Secure Encryption.

The HPE Smart Array E208e-p SR Gen10 Controller protects data-at-rest on any drive attached to the controller with HPE Smart Array SR Secure Encryption (optional license).

Built-in reliability and security
