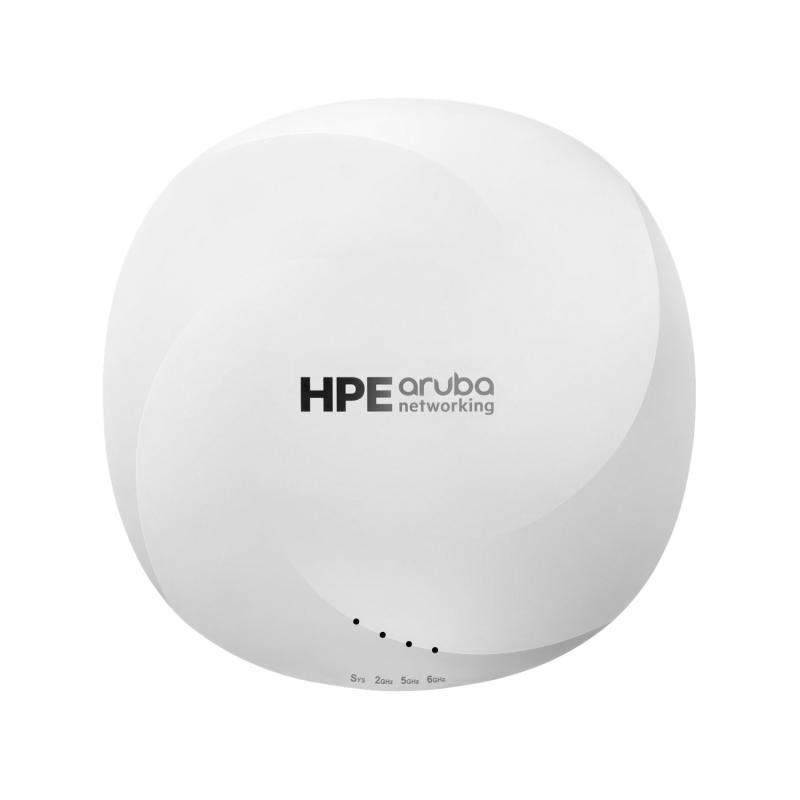

HPE Aruba Networking AP-615-RW Dual Radio Tri Band 2×2 Wi-Fi 6E Int Antennas Campus AP

Aruba AP-615 (RW) Campus AP

Lifecycle

• Obsolete Date 31-12-2099

Specifications

• Ports E0: Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
• Wi-Fi antenna AP-615: Integrated down-tilt omni-directional antennas for 2×2 MIMO. Built-in antennas are optimized for horizontal ceiling-mounted orientation of the access point. The down-tilt angle gain is roughly 30° to 40°.
• Warranty Limited lifetime warranty. See the warranty duration guide.
• Product dimensions (imperial) 2 x 7.9 x 7.2 in
• Integrated sensor No
• IoT support Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio, USB 2.0 type A
• Location services 802.11 FTM support; GNSS receiver
• Max bandwidths and peak data rate per band 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate
• Ultra tri-band (UTB) filtering No
• Wi-Fi generation Wi-Fi 6E (802.11ax with 6 GHz)
• Wi-Fi radios 2×2:2
• Wired network interface 1 x 2.5 Gbps
• AP management On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
• AP operating system support HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10
• Cellular support USB LTE modem (sold separately)
• Deployment Indoor
• MACsec support No
• Radio configuration options 2.4 GHz and 5 GHz or 2.4 GHz and 6 GHz or 5 GHz and 6 GHz
• Certifications UL2043 plenum rating Wi‑Fi Alliance®: Wi-Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location™ Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4)
• Product dimensions (metric) 5.1 x 20.1 x 18.3 x cm
• Weight 0.72 kg
• Weight 1.59 lb
• Regulatory FCC/ISED CE Marked Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, contact your HPE representative.

Quickspecs

• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs

Overview

HPE Aruba Networking 610 Series Campus Access Points are designed to take advantage of the 6 GHz band and achieve up to a combined maximum 3.6 Gbps data rate for higher throughput and faster speeds indoors. Adding support for the 6 GHz band increases capacity by up to 1200 MHz with more 80/160 MHz channels to support growing demands due to bandwidth-hungry video, growth in client and Internet of Things (IoT) devices, and expanded use of the cloud. The compact and cost-effective 610 series features dual radios that can be tuned to any two of the three spectrum bands for Wi-Fi: 2.4 GHz, 5 GHz, and 6 GHz. Full tri-band coverage is available in a multi-access point deployment. Built-in GPS receivers and fine time measurements enable the 610 series to automatically locate themselves and serve as reference points for accurate indoor location measurements. The 610 series includes a limited lifetime warranty.

What’s new

• The 610 series provides up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications
• Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source [1]
• Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements
• It is offered as optional eco-friendly 10-pack
• Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate
• Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments

Features

The 610 series is designed for indoor environments

More Capacity and Wider Channels with Wi-Fi 6E

With up to seven 160 MHz channels, the APs increase performance for low-latency, bandwidth-hungry applications.

Cost-effective and Compact 6 GHz Coverage

Software-programable radios can be configured to cover any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz.

Client and RF optimization to match clients with the best available access point and reduce coverage gaps.

Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise.

HPE Aruba Networking 610 Series Campus Access Points equip enterprises with 6 GHz coverage providing up to 1200 MHz additional capacity at an attractive price point.

It offers low power (802.3af Class 3) and compact form factor for ease of deployment.

Extends Capabilities of Wi-Fi 6 (802.11ax)

Unique AP capabilities include ClientMatch, advanced cellular coexistence (ACC), and intelligent power monitoring (IPM) to customize user experience and energy use.

HPE Aruba Networking 610 Series Campus Access Points are based on the 802.11ax standard so multi-user efficiency and security features are applied to Wi-Fi 6E.

Wi-Fi 6E extends support for Wi-Fi 6 features such as OFDMA, MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.

Indoor Location-Aware Access Points

The access point supports Open Locate, an emerging standard that allows APs to share their location over the air and through cloud-based APIs.

HPE Aruba Networking 610 Series Campus Access Points include built-in GPS receivers and fine time measurement to automatically and accurately locate themselves.

HPE Aruba Networking 610 Series Campus Access Points with dual radios deliver up to a maximum combined 3.6 Gbps data rate for higher throughput and faster speeds.

Media

Aruba 1-2-3: What is the future of Wi-Fi?

After nearly 20 years of being limited to the 2.4 and 5 GHz bands, Wi-Fi 6E introduces the 6 GHz band which gives us access to much more bandwidth to support a wide range of applications and devices.

Compatible products

• HPE Aruba Networking AP-POE-AFGE 1-Port GbE 802.3af 15.4W Midspan Injector
• HPE Aruba Networking AP-MNT-D Campus AP Type D Solid Surface Mount Bracket Kit
• HPE Aruba Networking AP-MNT-MP10-D Campus AP 10-Pack Solid Surface Mount Bracket Kit
• HPE Aruba Networking AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable
• HPE Aruba Networking AP-MNT-C Campus AP Type C Suspended Ceiling Rail 9/16 Profile Mnt Bracket Kit
• HPE Aruba Networking AP-MNT-E Campus AP Type E Wall-Box Mount Bracket Kit
• HPE Aruba Networking AP-MNT-A Campus AP Type A Suspended Ceiling Rail Flat 9/16 Mount Bracket Kit
• HPE Aruba Networking AP-MNT-MP10-U
• HPE Aruba Networking AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Midspan Injector
• HPE Aruba Networking AP-AC2-12B 12V/48W AC/DC Desktop Style Power Adapter with 2.1/5.5mm Connector
• HPE ANW AP-MNT-U CAMPUS TYPE U BRKT KIT
• HPE Aruba Networking AP-MNT-B Campus AP Type B Suspended Ceiling Rail Flat 15/16 Mount Bracket Kit
• Aruba 3Y FC NBD Exch AP-615 Campus SVC
• AP-MOD-SERU CONSOLE ADAPTER MODULE

Documents

• HPE Aruba Networking 610 Series Campus Access Points
• HPE Aruba Networking 610 Series Campus Access Points QuickSpecs
• Wi-Fi 6 vs Wi-Fi 6E Infographic
• HPE Aruba Networking 610 Series Campus Access Points
• Interconnected retail on a massive scale – The Home Depot
• Interconnected retail on a massive scale – The Home Depot

[1] By default (with IPM disabled) the AP-615 will disable the USB port (only) when on Class 3 PoE. The IPM feature can be used to avoid this restriction.
