Aruba AP-535 (RW) Unified AP
Lifecycle
- Obsolete Date 01-01-2100
- End of support date 31-12-2104
Specifications
- Weight 2.2 lb

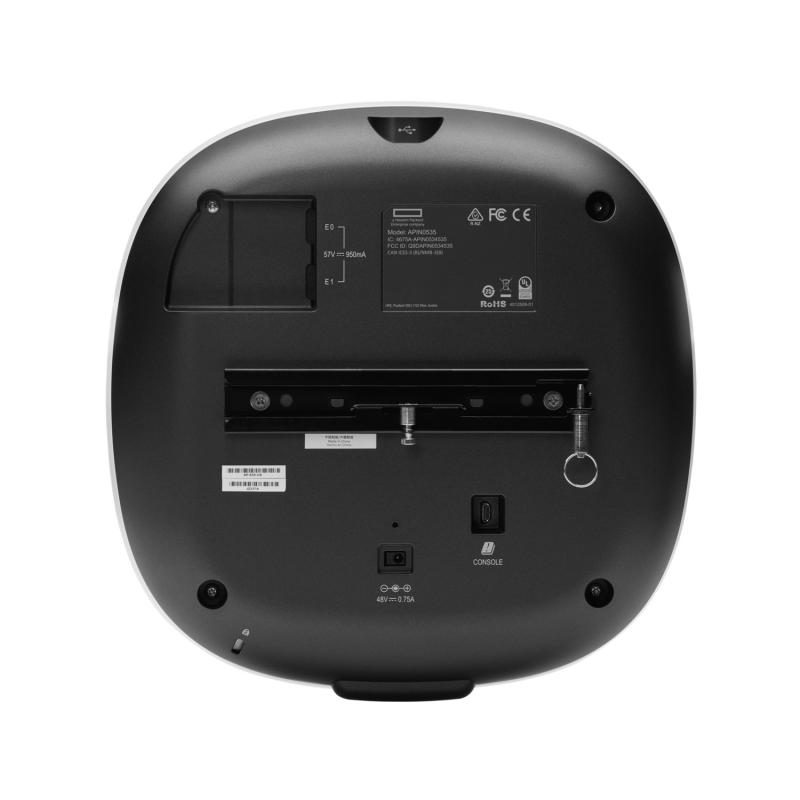

- Ports E0, E1: Ethernet port (RJ-45) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) Kensington security slot
- Warranty Limited lifetime warranty. See the warranty duration.
- Weight 1.0 kg
- Wi-Fi antenna Four integrated dual-band downtilt omnidirectional antennas for 4×4 MIMO with peak antenna gain of 3.5 dBi in 2.4 GHz and 5.4 dBi in 5 GHz.
- Product dimensions (imperial) 2.2 x 9.4 x 9.4 in (AP-534), 2.8 x 9.1 x 8.7 in (AP-535)
- Product dimensions (metric) 57 x 240 x 240 mm (AP-534), 80mm x 270 x 270 mm (AP-535)
- Certifications UL2043 plenum rating Wi‑Fi Alliance®: Wi-Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth Special Interest Group (SIG)
- Regulatory FCC/ISED CE marked Radio Equipment Directive (RED) Directive 2014/53/EU Electromagnetic compatibility (EMC) Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 Railway certs (AP-535 Only): EN 50155:2017—Railway applications EN 50121-1:2017—Railway EMC EN 50121-3-2—Railway EMC EN 50121-4:2016—Railway immunity IEC 61373 ed2:2008—Railway shock and vibration. For more country-specific regulatory information and approvals, contact your HPE representative.
- Max bandwidths and peak data rate per band 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps
- Ultra tri-band (UTB) filtering No
- AP management On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
- AP operating system support HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later.
- Cellular support USB LTE modem (sold separately)
- Deployment Indoor
- Integrated sensor No
- IoT support IEEE 802.15.4/Zigbee or Bluetooth 5.0, USB 2.0 Type A
- Location services 802.11 FTM support
- MACsec support No
- Radio configuration options 2.4 GHz and 5 GHz
- Wi-Fi generation Wi-Fi 6 (802.11ax)
- Wi-Fi radios Dual 4×4
- Wired network interface 2 x 5GbE
Quickspecs
Overview
The HPE Aruba Networking 530 Series Campus Access Points provide Wi-Fi 6 connectivity for high-density deployments such as larger office spaces, training and meeting facilities, and hospitals. Providing up to 2.97 Gbps combined aggregate data rate, this series is built on Wi-Fi 6 standards (IEEE 802.11ax) and includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency. The 530 series can be deployed using zero touch provisioning (ZTP) without on‑site technical expertise, for ease of implementation in branch offices and for remote work. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 530 series includes a limited lifetime warranty.
What’s new
- Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate
- Dual radio AP supporting 5 GHz and 2.4 GHz bands (4×4 MIMO)
- Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEFs)
- IoT-ready with support for Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity

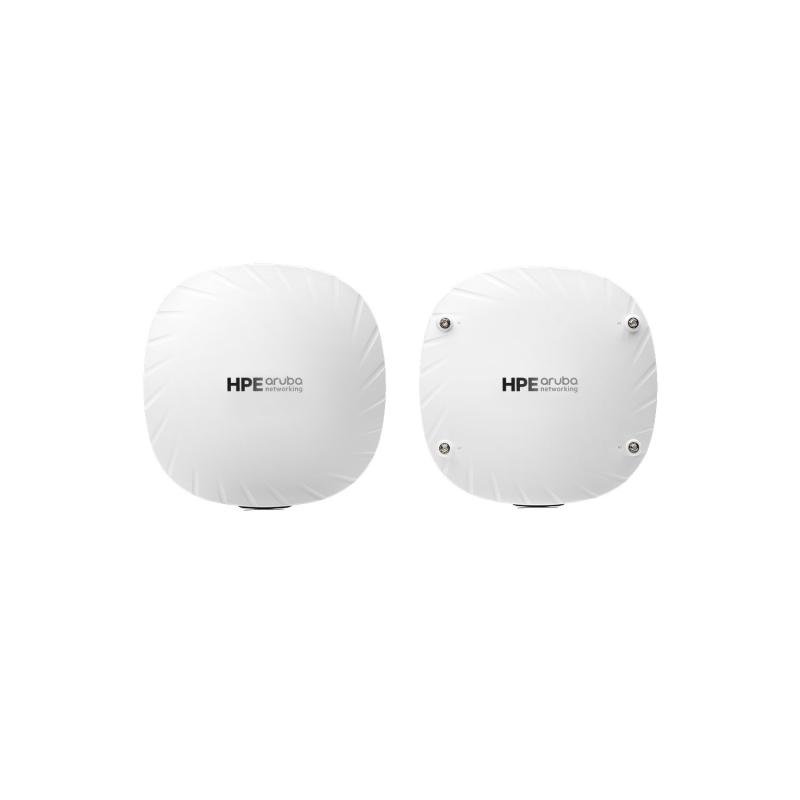

- Deploy models with internal antennas or connectorized models that support external antennas to meet the range of environments
Features
Boost your Wi-Fi 6 Performance
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it it receives one of the best radio signals.
The AP supports an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support), as well as a USB port for increased flexibility, providing better security and reliable connectivity for IoT devices.
The HPE Aruba Networking 530 Series Campus Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.
IoT Ready
The AP simplifies policy enforcement by using the PEF to encapsulate all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
The HPE Aruba Networking 530 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
Security By Design
The HPE Aruba Networking 530 Series Campus Access Points support AI-powered dynamic power save mode which enables APs to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint.
The intelligent power monitoring (IPM) provides the ability to enable or disable capabilities based on available PoE power.
Sustainability
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that helps verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
For enhanced device assurance, the 530 series include an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention.
Two 5 Gbps ports provide flexibility to support speeds of 1, 2.5, or 5 Gbps (or 100 Mbps).
The HPE Aruba Networking 530 Series Campus Access Points are designed to simultaneously serve multiple clients and traffic types providing up to 2.97 Gbps combined aggregate data rate.
Dual-radio (dual 4×4 MIMO) 802.11ax AP with up-and downlink OFDMA and Multi-User MIMO (MU-MIMO).
The AP includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.
