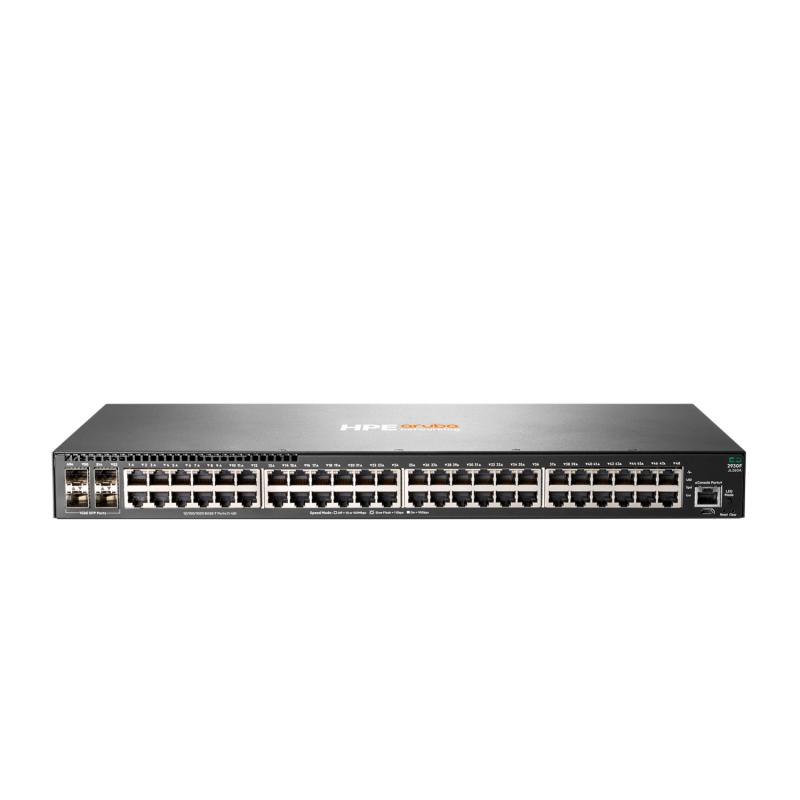

Aruba 2930F 48G 4SFP Swch
Lifecycle
- Obsolete Date 31-12-2099
- End of support date 31-12-2104
Specifications
- Management features HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central network management HPE IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
- Latency 1000 Mb Latency: < 3.8 µs
- Ports 48x RJ-45 autosensing 10/100/1000 ports 4x SFP
- Weight 6.83 lb
- Product dimensions (metric) 4.39 x 44.25 x 24.63 cm
- Weight 3.1 kg
- Switching capacity 104 Gbps
- Heat dissipation 100 BTU/hr (105.5 kJ/hr)
- Power consumption 46.6W (maximum)
- Input voltage 100–127/200–240 VAC, rated
- Throughput Up to 77.4 Mpps
- Product dimensions (imperial) 1.73 x 17.42 x 9.7 in
- Warranty Limited lifetime warranty. See the warranty duration.
- Memory and processor Dual Core Arm® Cortex® A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC
Quickspecs
Overview
The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F series delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What’s new
- Scale with 8-member stacking
- Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support
- The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks
Features
High-performance Access Layer Switches
Performance and Power at the Edge
Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
Simplified Management for Your Network
Up to 8-member stacking with HPE Aruba Networking Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
The HPE Aruba Networking 2930F Switch Series is designed with a powerful ProVision ASIC to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
HPE Aruba Networking Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks.
The HPE Aruba Networking 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
The HPE Aruba Networking 2930F Switch Series supports HPE Aruba Networking ClearPass Policy Manager for unified, consistent policy between wired and wireless users, simplifying implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
Security and Quality of Service You Can Rely on
RMON and sFlow® provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
Provides optimal configuration automatically when connected to HPE Aruba Networking access points for PoE priority, VLAN configuration, and rogue AP containment.
HPE Aruba Networking Management Software (AirWave) provides an on-premise network management platform for wired and wireless network devices. Cloud-based management with Zero Touch Provisioning (ZTP) supported by HPE Aruba Networking Central.
Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow®, IPv6 with no software licensing required.
The HPE Aruba Networking 2930F Switch Series provides performance, security, and ease of use optimized for the digital workplace with unified management tools such as HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (Airwave), and HPE Aruba Networking Central.
Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones, depending on model.
Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.
